Design Features
• Free remote control with LCD Display included!
• High performance, high surge power
• True sine wave output for sensitive loads
• Economically priced
• Samlex “Soft Start” & “Low Interference” technology
• Universal Circuit Protection: thermal, battery, overload, short circuit & earth fault
• Cool surface technology

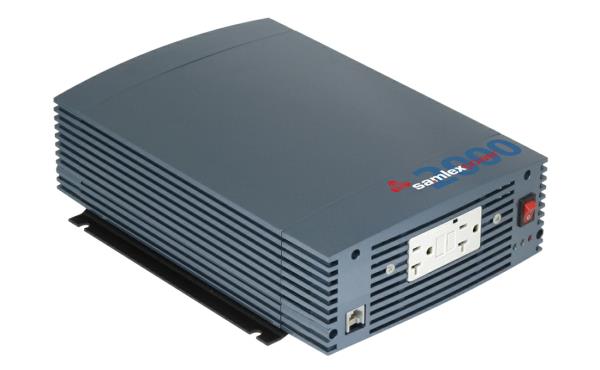

2000 Watt Pure Sine Wave Inverter
SSW Series
Model: SSW-2000-12A
Ideal for powering office equipment, television, DVD, Video Games, battery chargers and other sensitive loads from your car, truck, boat, RV, or Solar System batteries
• Compact and lightweight
• High Surge: 2X Continuous Power
• 2 GFCI protected outlets
Applications
• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers
Samlex SSW-2000-12A
Inversores Onda Sinusoidal Pura Solares
SSW 2000 12A Samlex America
pure sine wave solar Inverter
Inverter SSW 2000 W 12 V 120 VAC Samlex pure sine wave
Continuous Output Power
2000 Watts
Surge Output Power
4000 Watts (< 1 sec)
Output Voltage
115 VAC (± 5 VAC)
Output Frequency
60 Hz ± 1Hz
Type of Output Waveform
Pure Sine Wave
Total Harmonic Distortion
< 3% of Output Waveform
Peak Efficiency
> 90%
Nominal DC Input Voltage
12 VDC
Maximum Input Current
200 A
DC Input Current at No Load
< 1.1A
Working environment - Cooling
Indoor use - Temperature controlled fan
Overload Shutdown
Yes
Over Temperature Shutdown
Yes
Reverse Polarity on DC Input Side
External / internal DC sides fuses
Weight (kg)
4,0
Dimensions (W x D x H)
222 x 333 x 89 mm
Display / Led
REMOTE CONTROL SSW-R1-12B
Compliance Safety
Listed to UL Standard UL-458
Wired Remote Control with LED LED Display Wired ON / OFF Control
SSW-R1-12B (included)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
Especificaciones técnicas SSW-2000-12A
