Design Features
• Switching mode design
• High efficiency
• Modified sine wave output voltage
• 12 VDC input and 120 VAC output
• Overload protection
• High output current surge
• Low battery alarm / shut down
• Low idle power draw of less than 0.05 Amps
• Compact and light weight
• One output receptacle
• Configuration also enables hardwiring to multi-outlets

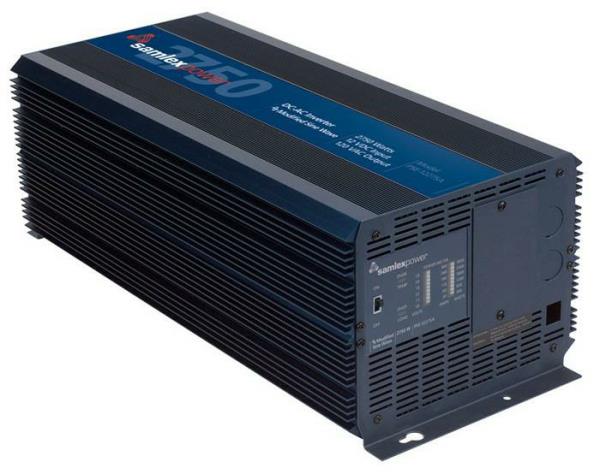

2750 Watt Modified Sine Wave Inverter
PSE Series
Model: PSE-12275A
This high efficiency modified sine-wave DC-AC inverter converts 12 Volts DC (Nominal) to 2750 watts of AC power at 120 Volts, 60 Hz.
The unit comes with a set of battery cable lugs. Output AC power is available by means of hardwire connection (NEMA 5-15R receptacles with 15 Amp breaker optional accessory).
Features include overload, over-temperature, low input and high input voltage protection. The front-end LED display indicates battery voltage and output power levels.
Applications
• Service vehicles
• Mobile Offices
• Boats
• Recreation Vehicles, Camping
• Telecommunication
• Field work / Construction sites
• Solar power systems
• Emergency backup power
• Home electronics: TV, VCR, video games
• Computers, printers, monitors, fax machines
• Tools and appliances
Samlex PSE-12275A
Inverter modified sine wave solar
PSE 2750 W 12V Samlex America
modified sine wave solar Inverter
Inverter PSE 12275A 2750 W 12 V 120 VAC Samlex Modified sine wave
Continuous Output Power
2750 W
Surge Output Power
4500 Watts
Output Voltage
120VAC +5% / - 10%
Output Frequency
60 Hz ± 1Hz
Type of Output Waveform
Modified Sine Wave
Total Harmonic Distortion
NA
Peak Efficiency
85% to 90%
Nominal DC Input Voltage
12 V Battery System
Maximum Input Current
< 360 A
DC Input Current at No Load
600 mA
Working environment - Cooling
Indoor use - Temperature controlled fan
Overload Shutdown
Yes **
Over Temperature Shutdown
Shut Down if internal hot spot > threshold
Reverse Polarity on DC Input Side
External / internal Automotive Type ATC
Weight (kg)
7,35
Dimensions (W x D x H)
205 x 495 x 160 mm
Display / Led
Colored, 10 Level LED Bar Graph
Compliance Safety
NA
Wired Remote Control with LED LED Display Wired ON / OFF Control
Model RC-15 (not included)
(i) By switching external contact
(ii) By switching external 12V / 24V signal
All specifications given above are at ambient temperature of 25°C
* Specifications are subject to change without notice
Especificaciones técnicas PSE 12275A
RC-15 (not included)
RC-15 (sold separatly)
Remote Control for SSW 2000-12A
Garantía limitada de 2 años.
